Included system

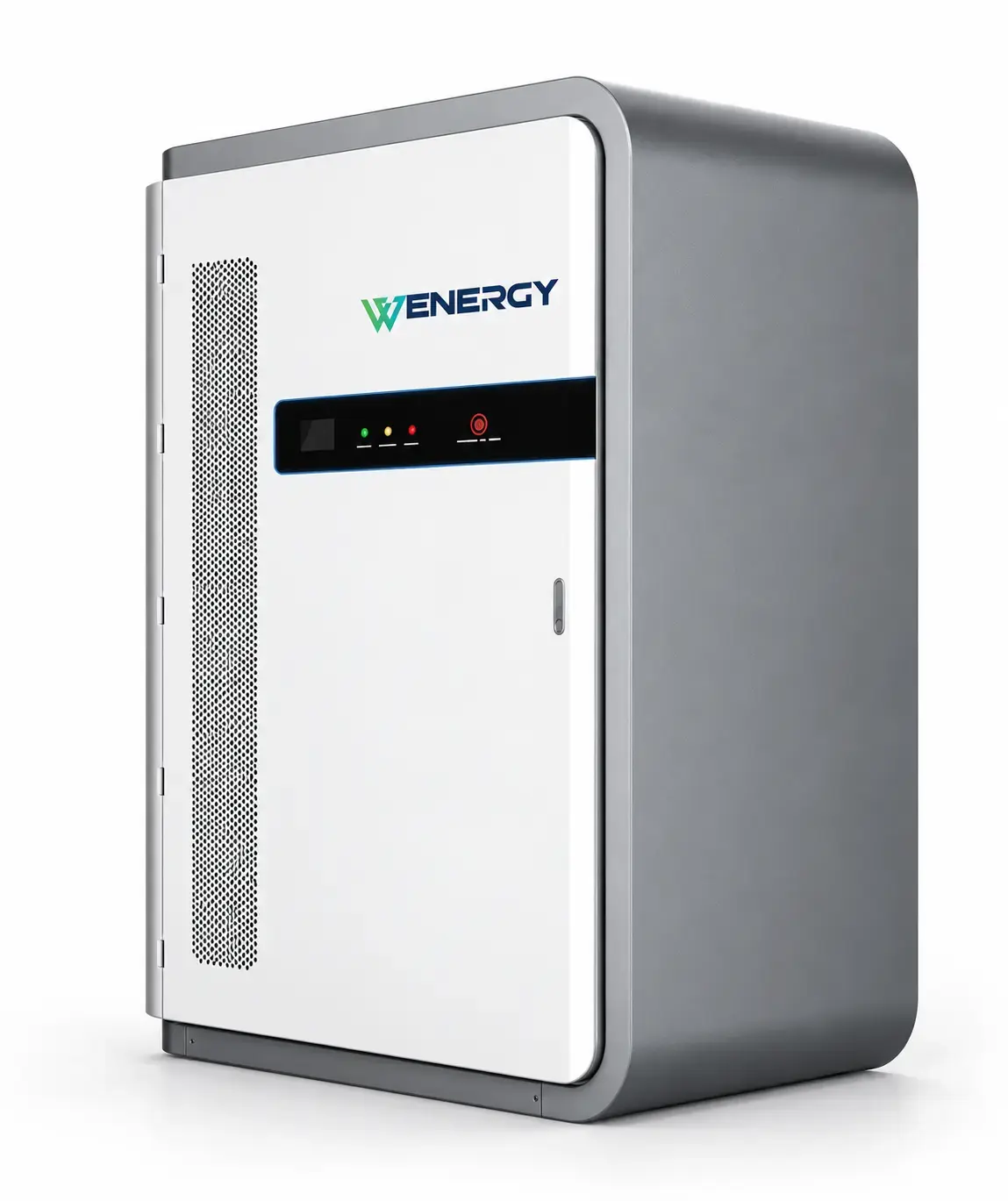

- 289kWh liquid-cooled LFP cabinet
- 125kW PCS
- EMS, BMS and fire protection
- Internal G100 shut-off functionality
- Online commissioning
COMMERCIAL BATTERY STORAGE
289kWh.
Ready for a real site.
A manufacturer-direct, liquid-cooled LFP system with 125kW rated output and integrated iEMS/PCS functionality for UK commercial projects.
Delivered from£39,940Subject to final quotation, access and project scope
Energy289kWh
Rated output125kW
ChemistryLFP
Thermal managementLiquid-cooled
WHY THIS SYSTEM
A practical commercial starting point.
The 289kWh cabinet can be assessed for sites seeking to reduce suitable demand peaks, improve solar self-consumption, coordinate EV charging or add controlled stored energy to an approved resilience design.
Multiple systems may be considered where the load profile and connection capacity support a larger modular deployment.
SYSTEM & COMMERCIAL SCOPE
What is included—and what must be designed.
Warranty & performance
- 5-year product warranty
- 10-year / 8,000-cycle performance cover
- 70% end-of-life capacity
- Final terms governed by signed quotation
Delivery & payment
- UK delivery included
- Indicative lead time: around 2 weeks
- 30% deposit / 70% on shipping
- Site access must be confirmed
Not included
- Installation and site works
- External current transformers
- External fail-safe switch if required
- DNO fees or witness testing
Monitoring & maintenance
- Web monitoring free for 2 years
- £700 annual maintenance plan
- SIM and glycol service included when required
- Optional service top-up: £199; scope to be confirmed
Project options
- Optional quick-install base: £2,995
- Energy-trading platform available
- UK/EU and factory engineering support
- Final options project-specific
Pricing and technical information are indicative and must be confirmed in the final written quotation. VAT, import treatment, installation, commissioning responsibilities, warranty and payment currency remain subject to the signed commercial terms.
GRID CONNECTION
G99 and G100-ready functionality
Integrated through the iEMS and PCS to support connection design and export-limitation planning.
Understand the connection scopeCOMMON QUESTIONS
Before requesting a quotation.
What data should I provide?+
Ideally: half-hourly electricity data, peak demand, import/export limits, solar capacity, planned EV charging, single-line diagram if available, site location and target timescale.
Can it provide backup power?+
Backup or islanded operation depends on the selected configuration, switchgear, protection, load priorities and approved site design. It should not be assumed from storage capacity alone.
Does Soundon manufacture the cells?+
Yes. Soundon has manufactured battery cells in China for more than 12 years and integrates its own cells across its storage products.
What happens after I enquire?+
We review the site objectives and available data, identify information gaps, then define whether a technical assessment or quotation is the appropriate next step.
